In industries where durability and precision matter, like aerospace, heavy equipment, and industrial automation, connector pin performance can make or break a system. In rugged applications, even minor flaws in contact pin design or material selection can lead to significant reliability issues. That’s why engineers need components that are built for endurance, consistency, and seamless mating.

At Bead Electronics, we specialize in custom contact pins designed to withstand the extreme. From vibration and shock to corrosive environments and thermal cycling, our custom contact pins deliver performance where it counts. Below, we’ll explore how to choose the right connector pins, the most common issues engineers encounter, and the materials and finishes that can optimize connector pin performance in harsh environments.

How Do I Select the Right Mating Connector Pins for My Application?

Choosing the right contact pins starts with understanding your application’s requirements. Consider the following factors:

• Mechanical Stress: Will the pins face vibration, shock, or mechanical wear? You may need swaged pins designed for repeated mating cycles and better retention.
• Electrical Performance: Evaluate current-carrying capacity, contact resistance, and shielding needs to avoid signal degradation.
• Operating Environment: Consider temperature extremes, humidity, chemical exposure, or debris. These affect what materials and platings will perform best.

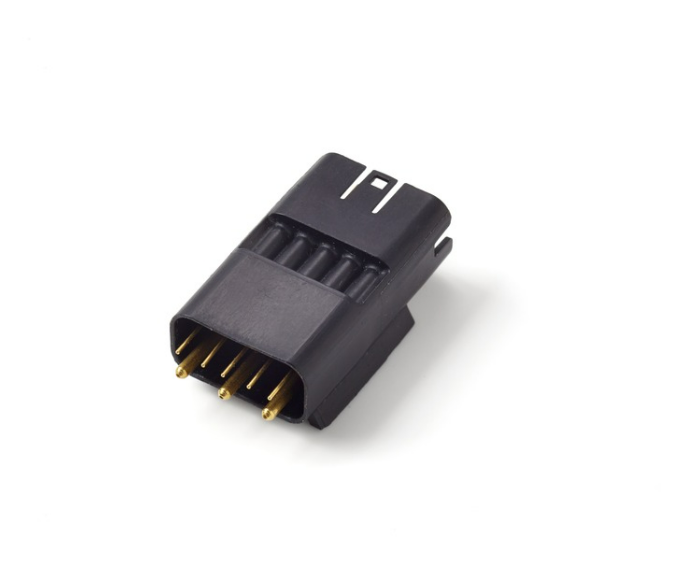

• Connector Housing: The housing type and design impact pin alignment, insertion force, and tolerance for movement.

Custom solutions often outperform off-the-shelf pins in challenging conditions. Our swaged pins, for example, are built to exact dimensions and deliver superior reliability in high-vibration environments.

What Are Common Issues with Mating Connectors—and How Can They Be Avoided?

Even the best connector housing won’t help if the pins inside it underperform. Here are three of the most frequent connector pin problems, and how to prevent them:

• Poor Alignment or Fit: Misaligned pins or inadequate retention force can lead to intermittent electrical contact. Custom pin tolerances and optimized designs prevent these mismatches.
• Wear and Fatigue: Repeated mating and unmating can degrade pin performance over time. Using durable materials minimizes wear and increases longevity.

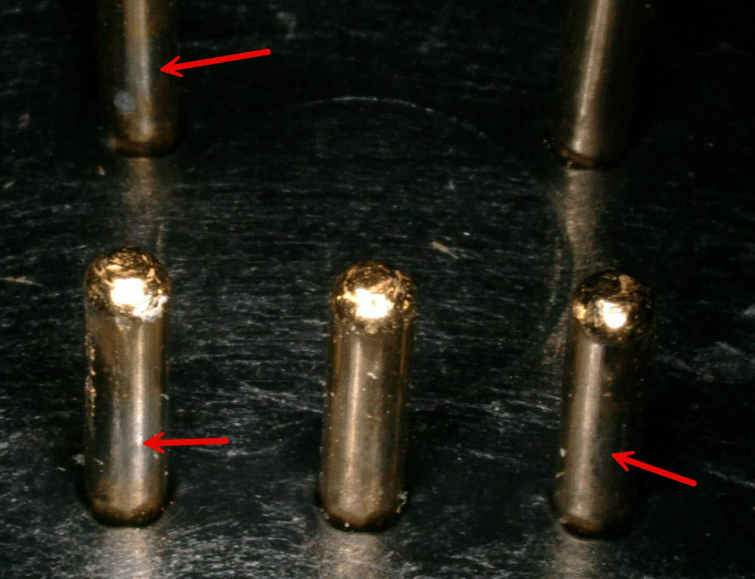

• Corrosion and Contamination: In humid, dusty, or chemically aggressive environments, unprotected pins can corrode or accumulate debris. Choosing the right finish, such as gold or nickel plating, can extend lifespan and maintain conductivity.

Proactive connector design can significantly reduce the risk of failure and save thousands in rework or system downtime.

Dive deeper into common mating connector issues here in our other blog.

What Materials and Finishes Are Best for Connector Pins?

The materials and plating finishes you choose directly impact performance, durability, and cost. Here are some of the top options:

• Base Materials: Brass and phosphor bronze are common due to their strength, conductivity, and formability.
• Plating Finishes:
  • Gold: Ideal for low-voltage or low-current applications where corrosion resistance and stable contact are critical. High reliability in harsh environment applications.
  • Nickel: Provides mechanical durability and corrosion resistance, often used under gold or as a standalone finish in harsh environments.
  • Tin: A cost-effective solution for less demanding conditions; tin plating is commonly used in automotive or consumer electronics.

At Bead, we work with clients to optimize these materials and finishes for their specific application, balancing performance, longevity, and cost.

Want to learn more? Download our free reference sheet on Plating for Electrical Connectors here.

Built to Endure: Custom Connector Pin Performance You Can Trust

Looking for engineering support or ready to prototype a new harsh environment connector? Contact our team to talk to a connector pin specialist today.
